Amlogic S912 64bit Octa-core TV BOX SHEET(H.265 4K Player)
Video Post-Processing Engine: Supports Dolby Vision, HDR10 and HLG HDR processing
BOX S10 Amlogic S912 With Extra Wireless phone charging function
Next: R-TV BOX PRO Amlogic S912
Previous: HAKOpro S905Y4-B
| Android OS | Android 7.1.2 | |
| CPU | Amlogic S912 Octa core ARM Cortex-A53 CPU up to 2GHz (DVFS) | |
| GPU | ARM Mali-T820MP3 GPU up to 750MHz (DVFS) | |
| RAM | 2GB/3GB DDR4 | |
| Memory size | 16GB/32GB/64GB EMMC Flash | |
| Language | Chinese,English...Multi-Language support | |
| Storage Extension | Support MicroSD(TF), Up to 32GB | |
| WIFI | WiFi+Bluetooth, 802.11a/b/g/n/ac, 2.4G/5G | |
| Ethernet | Ethernet 100M/1000M | |
| Bluetooth | BT4.1 | |

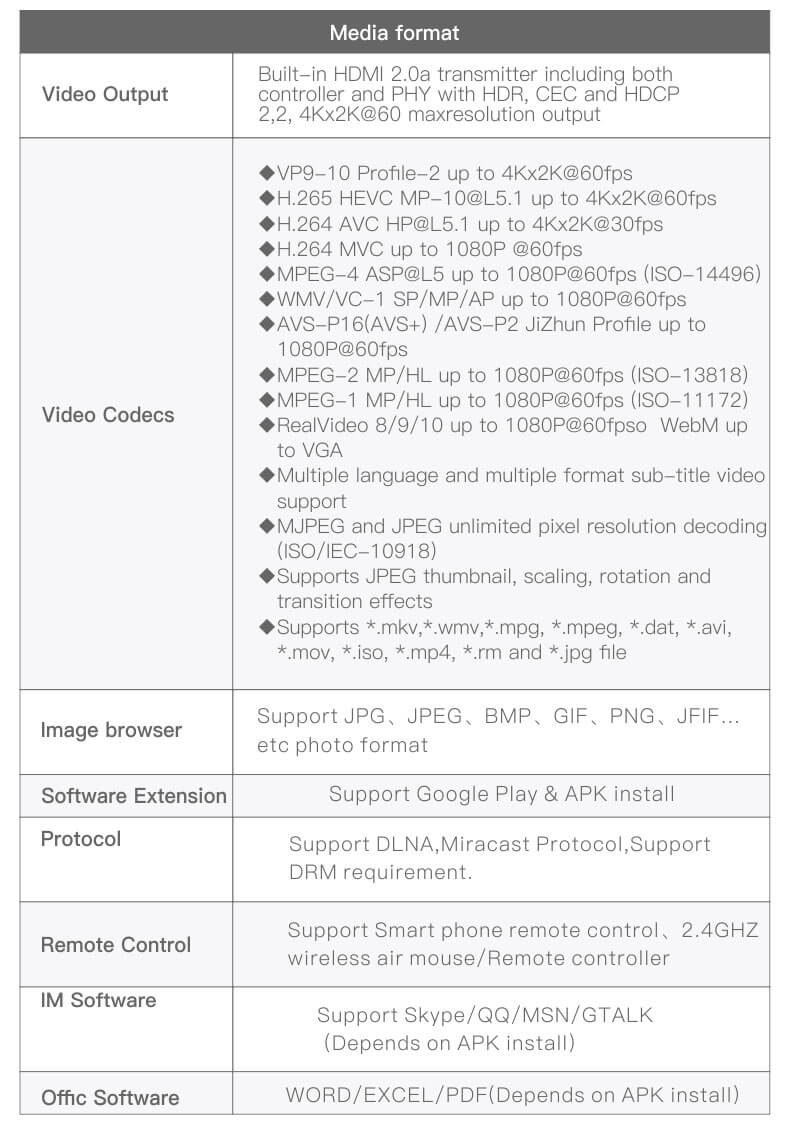

| Media format | ||
| HDMI | HDMI 2.0 up to 4K2K@60FPS | |
| Video Output | Built-in HDMI 2.0a transmitter including both controller and PHY with HDR, CEC and HDCP 2,2, 4Kx2K@60 max resolution output | |
| Video Codecs | o VP9-10 Profile-2 up to 4Kx2K@60fps o H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps o H.264 AVC HP@L5.1 up to 4Kx2K@30fps o H.264 MVC up to 1080P @60fps o MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) o WMV/VC-1 SP/MP/AP up to 1080P@60fps o AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps o MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) o MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) o RealVideo 8/9/10 up to 1080P@60fps o WebM up to VGA o Multiple language and multiple format sub-title video support o MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) o Supports JPEG thumbnail, scaling, rotation and transition effects o Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file | |
| Image browser | Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format | |
| Software Extension | Support Google Play & APK install | |
| Protocol | Support DLNA,Miracast Protocol,Support DRM requirement. | |
| Remote Control | Support Smart phone remote control、2.4GHZ wireless air mouse/Remote controller | |
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK install) | |
| Offic Software | WORD/EXCEL/PDF(Depends on APK install) | |
| Interface | ||
| HDMI Out | 1XHDMI | |
| USB Port | 2XUSB host + 1XUSB OTG | |
| SPDIF | 1XSPDIF | |
| AV | 1XAV | |
| Card Readere | 1X Micro SD card (TF card) reader | |
| Network | 1xRJ45 LAN Port | |
| Power Supply | 1x5V2A DC | |
